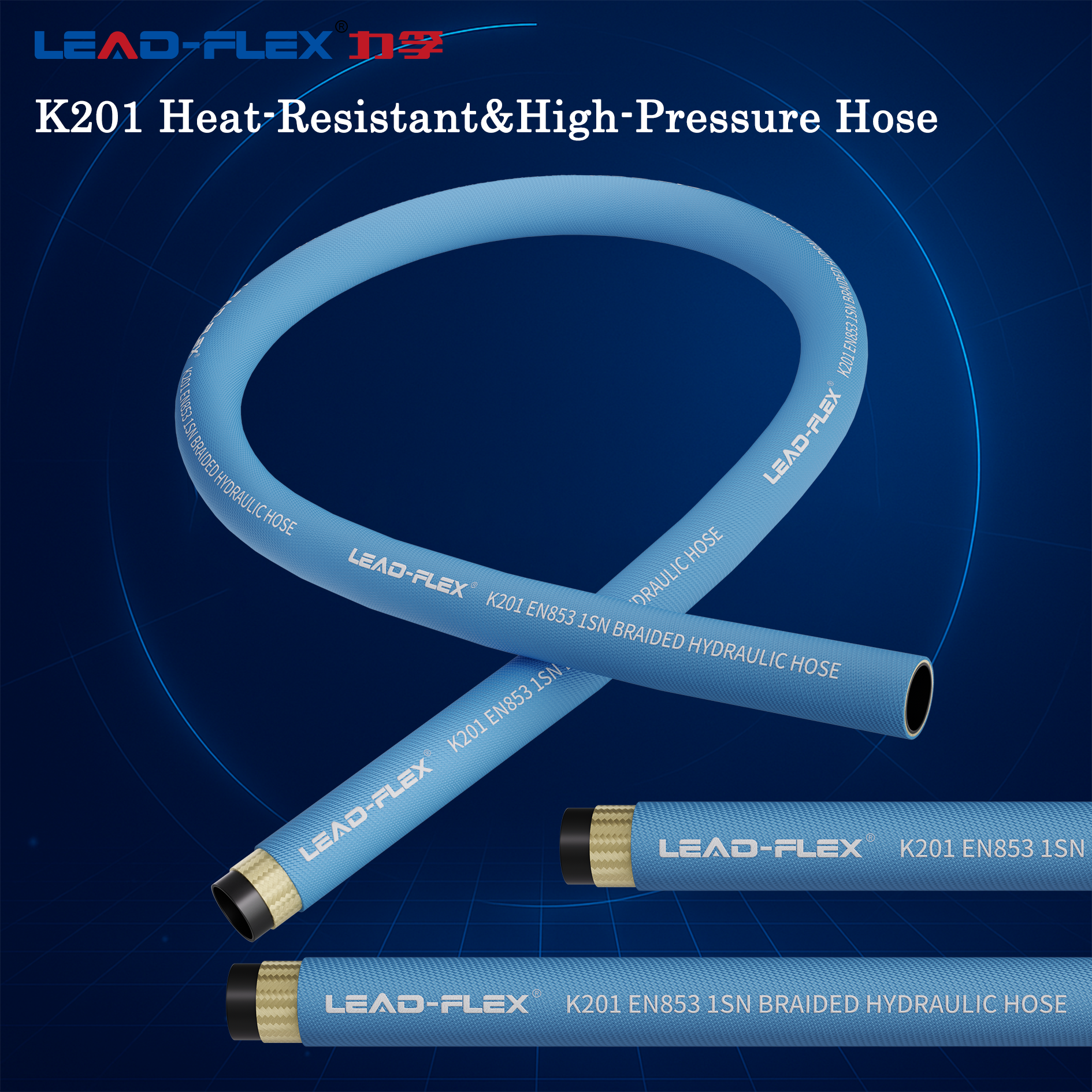

K201Hot Oil Hose/High Temperature Resistance Hose

Function: transportation of petroleum-based lubricants and compressed air with very high temperature.

Quantity:
Availability:





Inquire Add to Basket

Model:
K201
Brand:
LEAD-FLEX

Hydraulic Hose

Product Description

Product Parameters

Specially used to transport petroleum-based lubricants, K201 has great performance conveying high temperature medium. Not only on construction machinery, K201 is also frequently used on air compressors, transfering hot air.

Structure:

Inner Tube: High temperature resistant synthtic rubber

Reinforcement: Wire braid reinforcement

Outer Rubber : Synthetic rubber

Working Temperature: -40℃ to +150℃ .

微信截图_20241209154016

Product Series	Nominal Diameter	Size	ID(mm)		OD(mm)		W.P	B.P	W.T
	mm	inch	min	max	min	max	Mpa	Mpa	mm
K201-04-06	6	1/4"	6.2	7	12.7	14.1	19.2	76.8	100
K201-05-08	8	5/16"	7 5/7	85	14.3	15.7	17.5	70	115
K201-06- 10	10	3/8"	9 1/3	10.1	16.7	18.1	15.7	62.8	130
K201-08- 12.5	13	1/2"	12.3	13.5	19.8	21.4	14	56	180
K201- 10- 16	16	5/8"	15.5	16.7	22.9	24.5	10.5	42	200
K201- 12- 19	19	3/4"	18.6	19.8	26.9	28.5	8.7	34.8	240
K201- 16-25	25	1"	25	26.4	346	36.6	7	28	300
K201-20-31.5	32	1- 1/4"	31.4	33	42.2	44.8	4.3	17.2	420
K201-24-38	38	1- 1/2"	37.7	39.3	49.1	52.1	3.5	14	500
K201-32-51	51	2"	50.4	52	62.5	65.5	2.6	10.4	630
