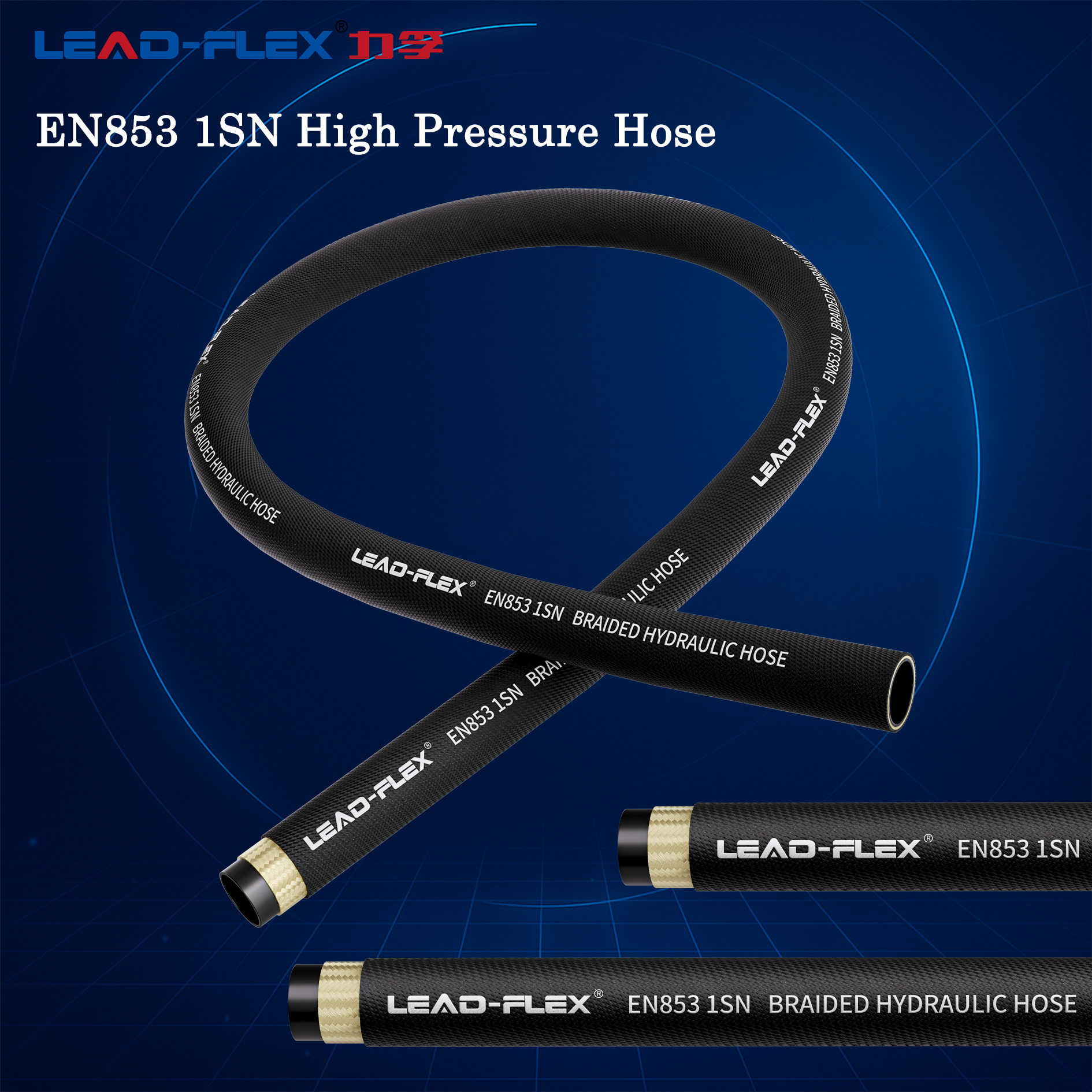

GB/T3683 SAE100R1AT/EN853-1SN Steel Wire Braided Hose

Function: transportation of glycol, mineral oil, lubrcation, emulsion, hydrocarbons, etc.

Quantity:
Availability:





Inquire Add to Basket

Model:
GB/T3683 SAE100R1AT/EN853-1SN
Brand:
LEAD-FLEX

Hydraulic Hose braided hose Braided Hydraulic Hose High Pressure Steel Wire Braided Hose

Product Description

Product Parameters

Construction

This rubber layer inside and outside the hose is composed of synthetic rubber with excellent low temperature resistance.

Applications

Suitable for conveying hydraulic ﬂuids such as glycol, mineral oil, lubrcation, emulsion, hydrocarbons etc.

Working Temperattuer

From -55℃ up to -100℃.

微信截图_20241209133824

Remark: Excluding the models listed in the table, the maximum size can reach 5 inches. Please leave a message to obtain detailed parameters and quotations.

Product Series	Nominal Diameter	Size	ID (mm)		W.D (mm)		OD (mm)	W.P	B.P	Min.B.R	W.T
	mm	inch	min	max	min	max	max	Mpa	Mpa	mm	Kg/m
D1SN-03-05	5	3/16"	4.6	5.4	9.0	10.0	12.5	25.0	100.0	90.0	0.19
D1SN-04-06	6.3	1/4"	6.2	7.0	10.6	11.7	14.1	22.5	90.0	100.0	0.22
D1SN-05-08	8	5/16"	7.7	8.5	12.1	13.3	15.7	21.5	85.0	110.0	0.27
D1SN-06- 10	10	3/8"	9.5	10.1	14.5	15.7	18.1	18.0	72.0	130.0	0.34
D1SN-08- 12.5	12.5	1/2"	12.3	13.5	17.5	19.1	21.4	16.0	64.0	180.0	0.42
D1SN- 10- 16	16	5/8"	15.5	16.7	20.6	22.2	24.5	13.0	52.0	200.0	0.51
D1SN- 12 - 19	19	3/4"	18.6	19.8	24.6	26.2	28.5	10.5	42.0	240.0	0.66
D1SN- 16-25	25	1"	25.0	26.4	32.5	34.1	36.6	8.8	35.0	300.0	0.96
D1SN-20-31.5	31.5	1 -1/4"	31.4	33	39.3	41.7	44.8	6.3	25.0	420.0	1.17
D1SN-24 -38	38	1 -1/2"	37.7	39.3	45.6	48.0	52.1	5.0	20.0	500.0	1.50
D1SN-32-51	51	2"	50.4	52.0	58.7	61.7	65.5	4.0	16.0	630.0	1.96
D2SN-03-05	5	3/16"	4.6	5.4	10.6	11.7	16	41.5	166.0	90.0	0.33
D2SN-04-06	6.3	1/4"	6.2	7.0	12.1	13.3	17.7	40.0	160.0	100.0	0.42
D2SN-05-08	8	5/16"	7.7	8.5	13.7	14.9	19.4	35.0	140.0	115.0	0.47
D2SN-06- 10	10	3/8"	9.3	10.1	16.1	17.3	21.7	33.0	132.0	130.0	0.6
D2SN-08- 12.5	12.5	1/2"	12.3	13.5	19.0	20.6	25	27.5	110.0	180.0	0.73
D2SN- 10- 16	16	5/8"	15.5	16.7	22.2	23.8	28.2	25.0	100.0	200.0	0.85
D2SN- 12 - 19	D19	3/4"	18.6	19.8	26.2	27.8	32.2	21.5	86.0	240.0	1.03
D2SN- 16-25	25	1"	25.0	26.4	34.1	35.7	39.3	16.5	66.0	300.0	1.44
D2SN-20-31.5	31.5	1 -1/4"	31.4	33.0	43.2	45.6	50.4	12.5	50.0	420.0	2.14
D2SN-24 -38	38	1 -1/2"	37.7	39.3	49.6	52.0	56.8	9.0	36.0	500.0	2.5
D2SN-32-51	51	2“	50.4	52.0	62.3	64.7	69.4	8.0	32.0	630.0	3.07
D2SN-40-63	63	2 -1/2"	63.1	65.1	74.6	77.8	81.8	7.0	28.0	760.0	3.47
